MRA306 1U 4Bay 3.5＂ SATA Trayless Rackmount Enclosure USB3.0+eSATA
|
MRA306 1U 4Bay 3.5" SATA Trayless Rackmount Enclosure USB3.0+eSATA MRA306 is a 17” 1U Trayless Rackmount Enclosure supports 4 x 3.5” SATA drives. With patented NSS connector supports 50,000 times hot swap. It is the best 1U Rackmount storage solution with eSATA + USB3.0 interface. It supports Raid function (Raid 0 \ 1 \ 3 \ 5 \ Jbod \ Nor \ Clone) which can be widely used in various product applications such as home theater, video surveillance, server expansion, etc.
|
 |
|

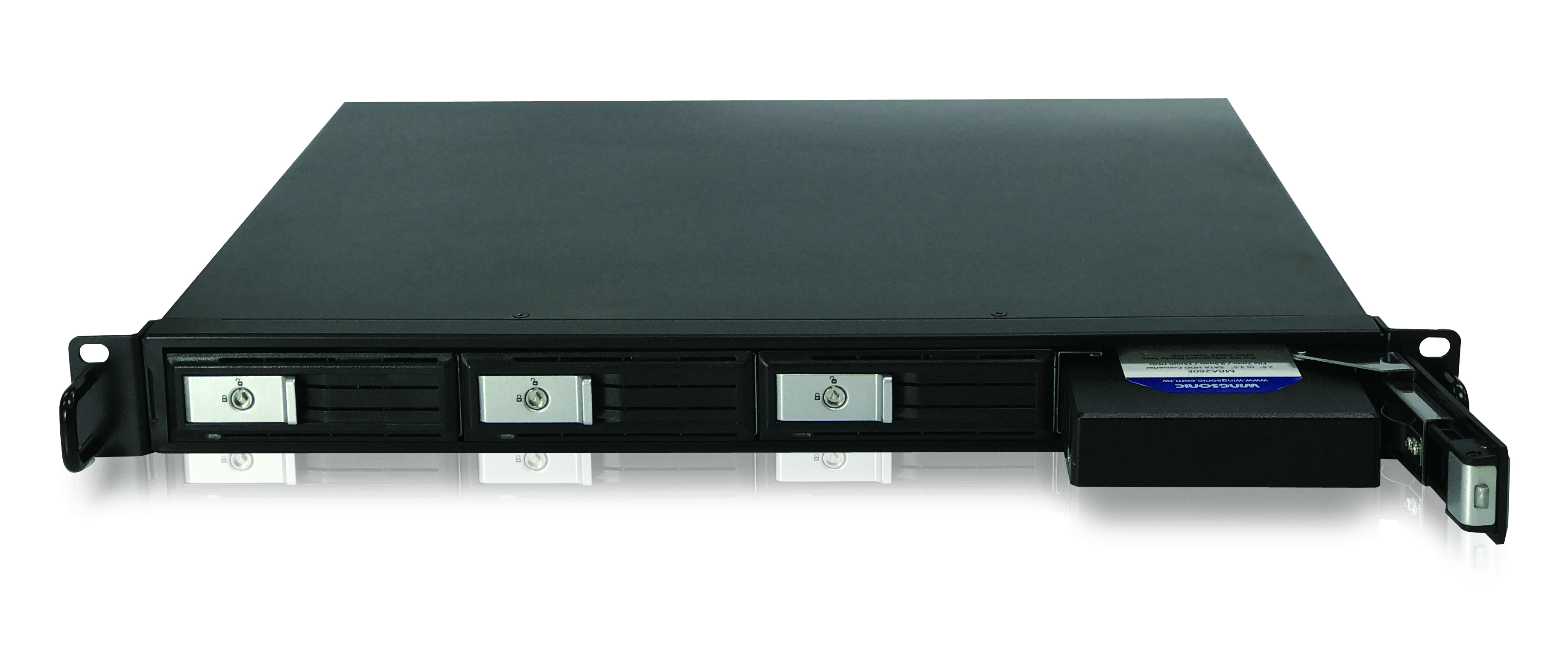

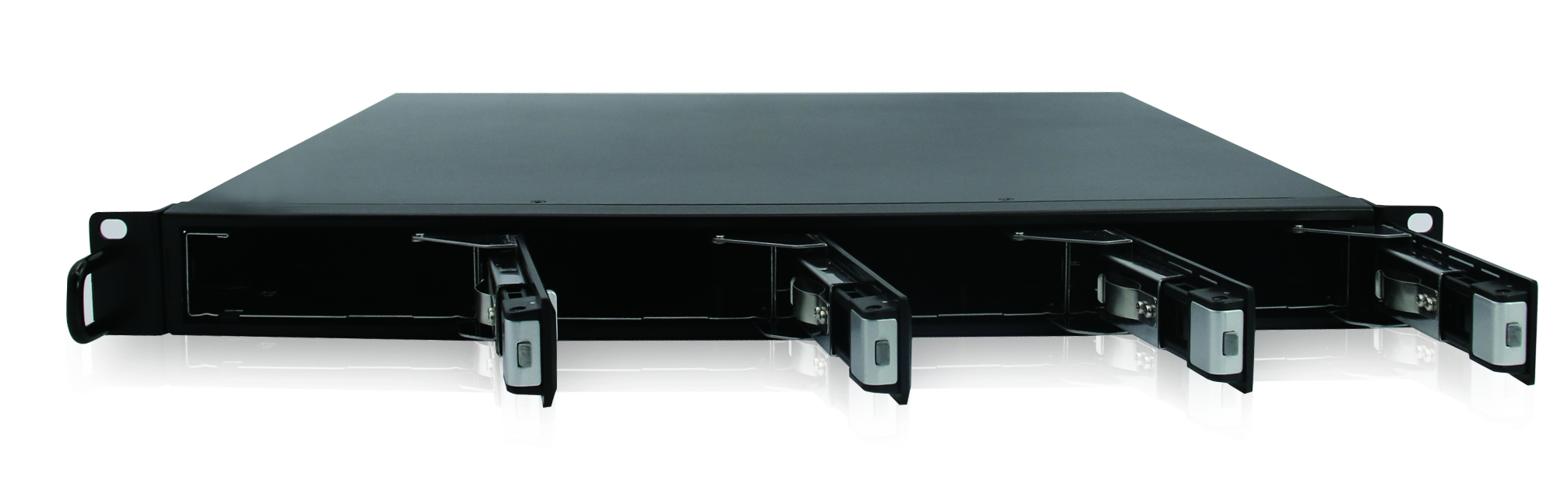

With screw-less and tool-free design, you could change the HDD rapidly |
 |

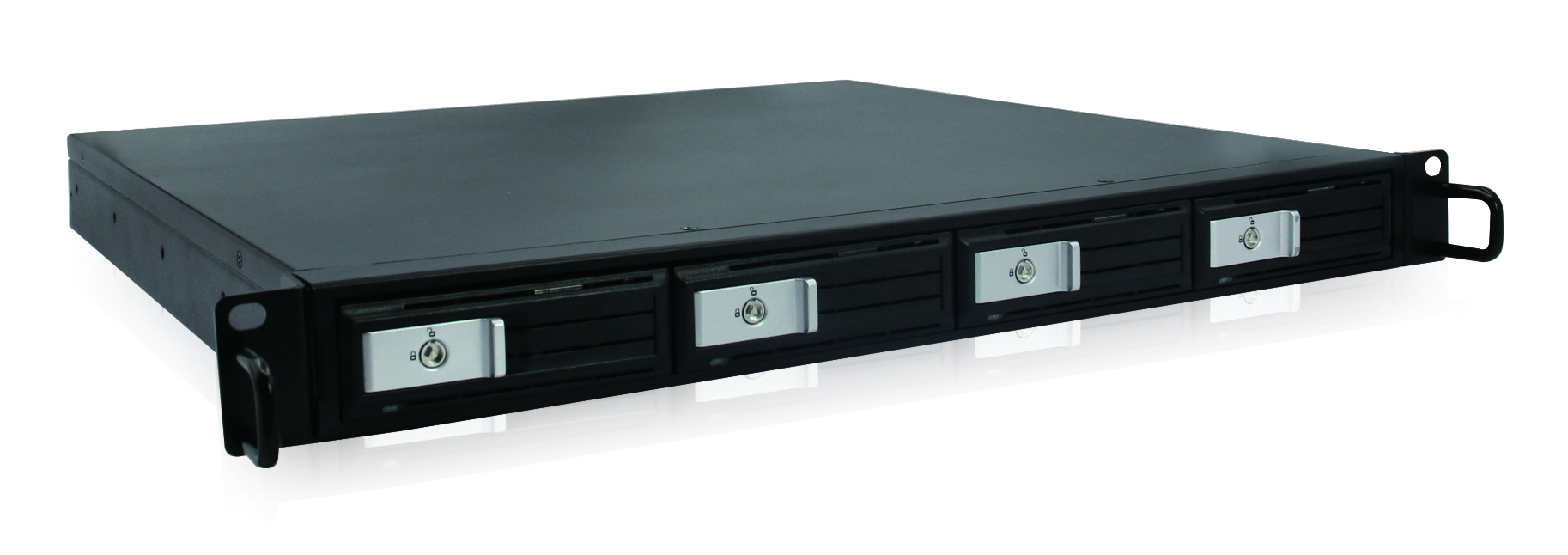

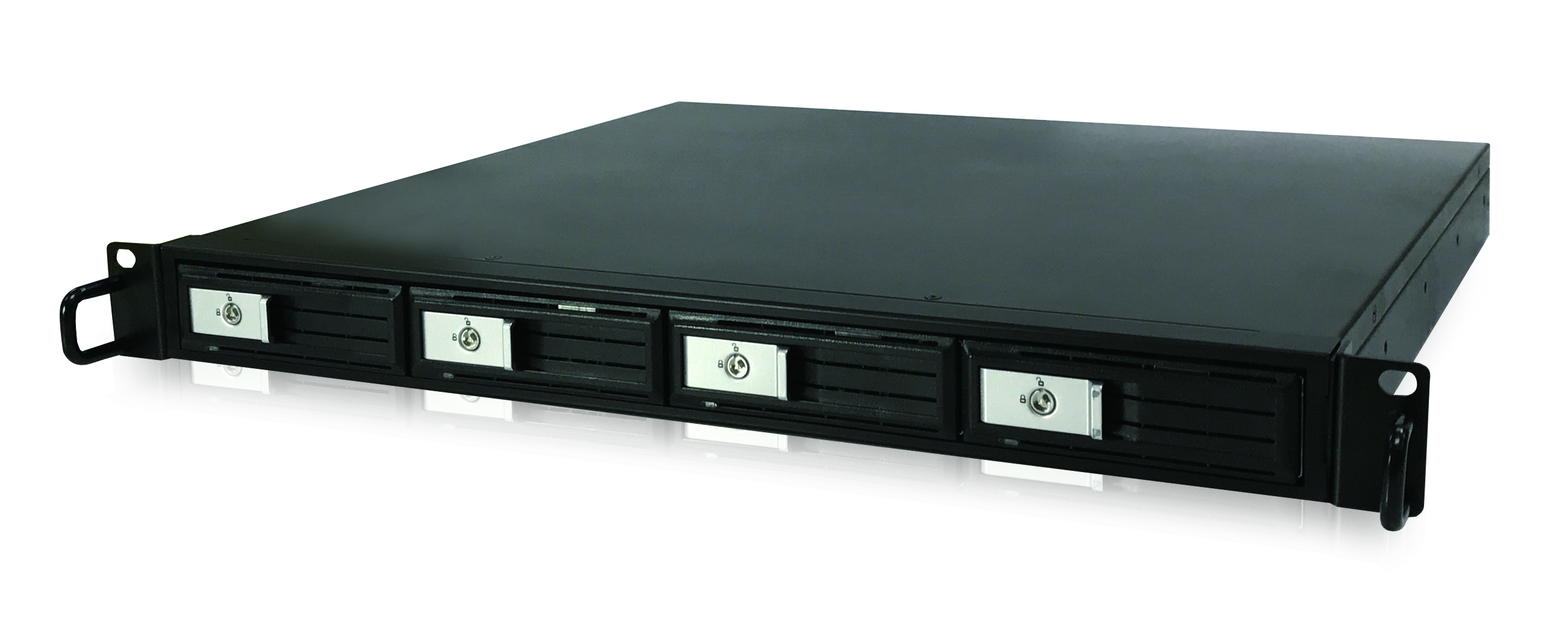

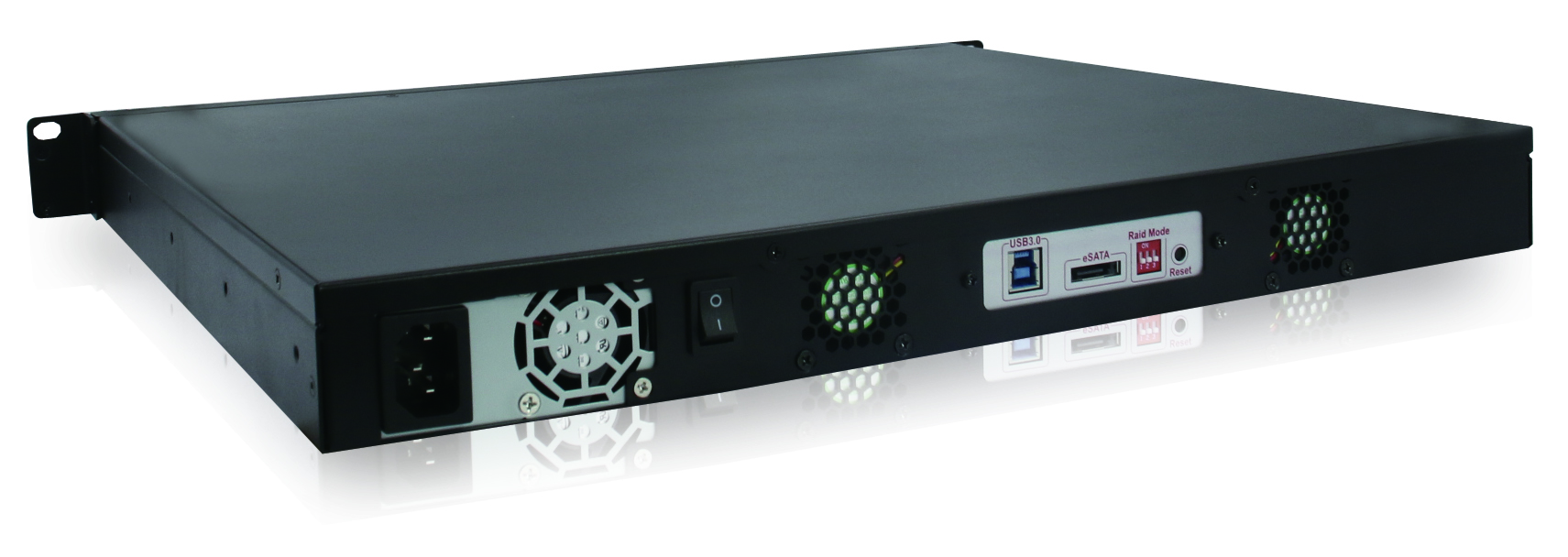

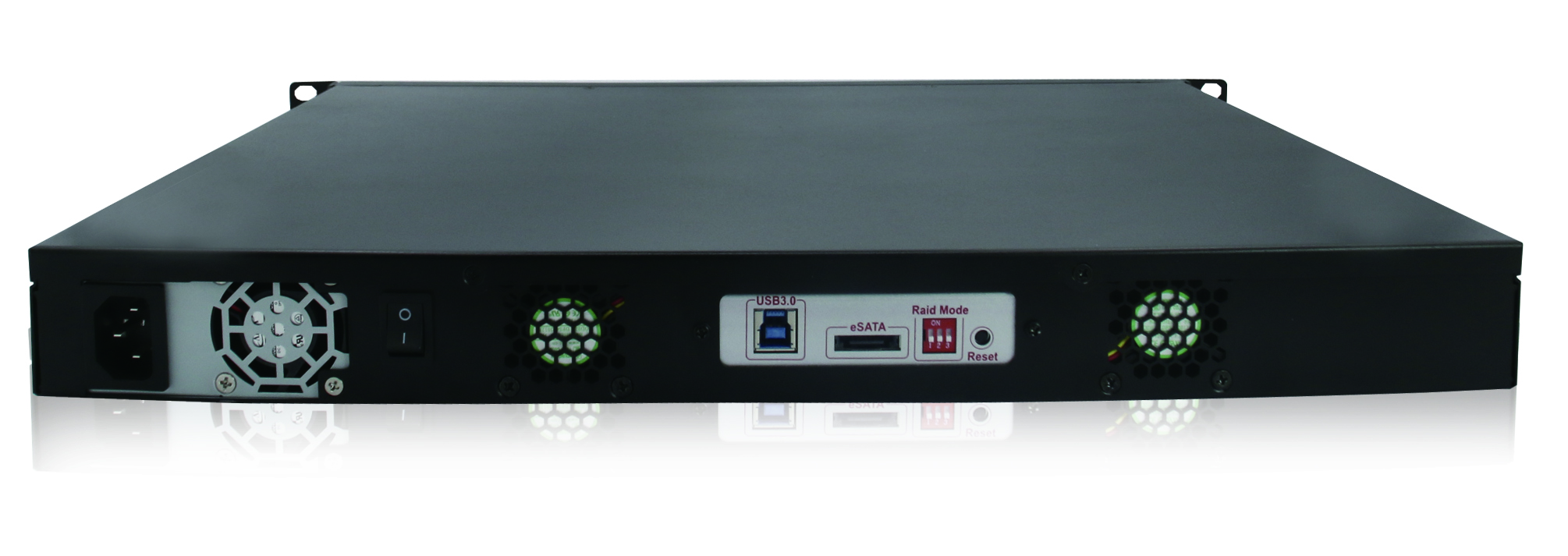

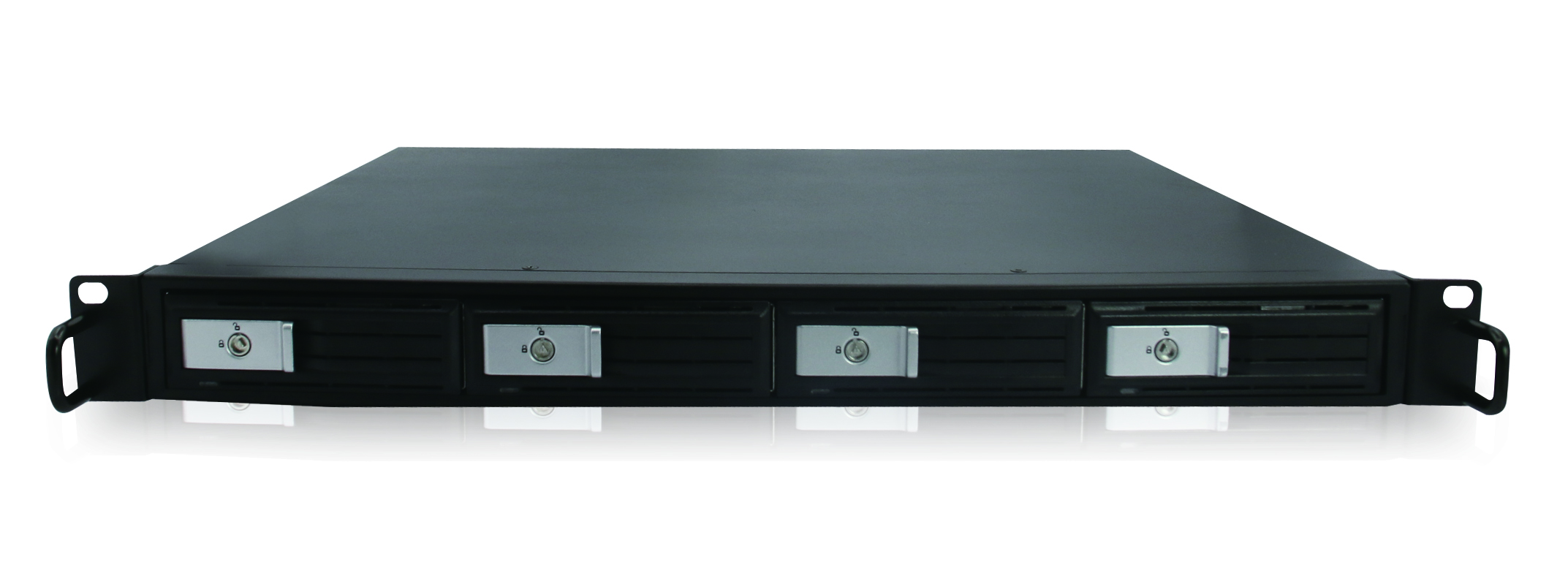

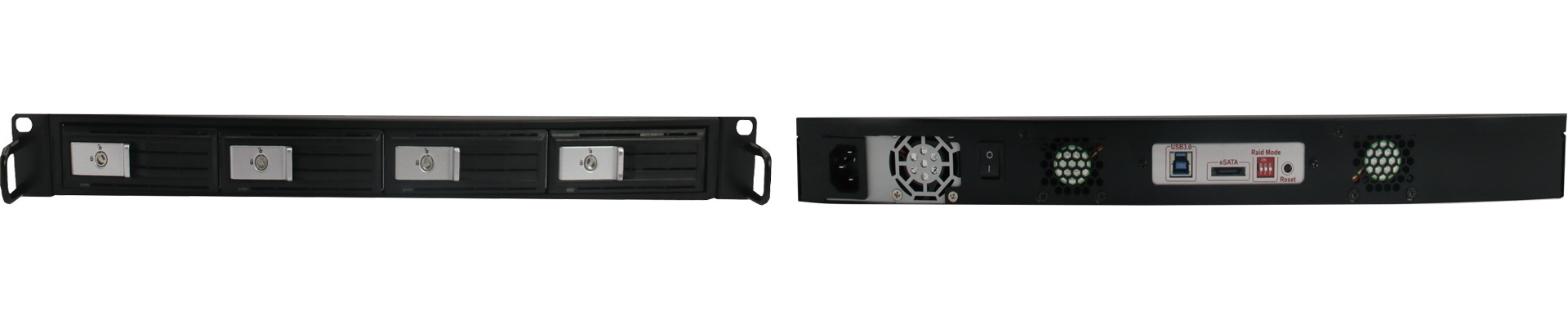

Product front/back view
Product specification
Product specification
| Model name : | 1U 4Bay 3.5" SATA Trayless Rackmount Enclosure USB3.0+eSATA | |
| Product Color : | Black frame + Silver door handle | |
| Type of HDD : | 3.5" SATA HDD | |
| Transmission Speed : | SATA II 3.0 Gb/sec. (Speed varies with the HDD) | |
| Assembly Space : | 17" 1U | |
| Interface : | USB3.0+eSATA | |
| Power Input : | AC 100~230V | |

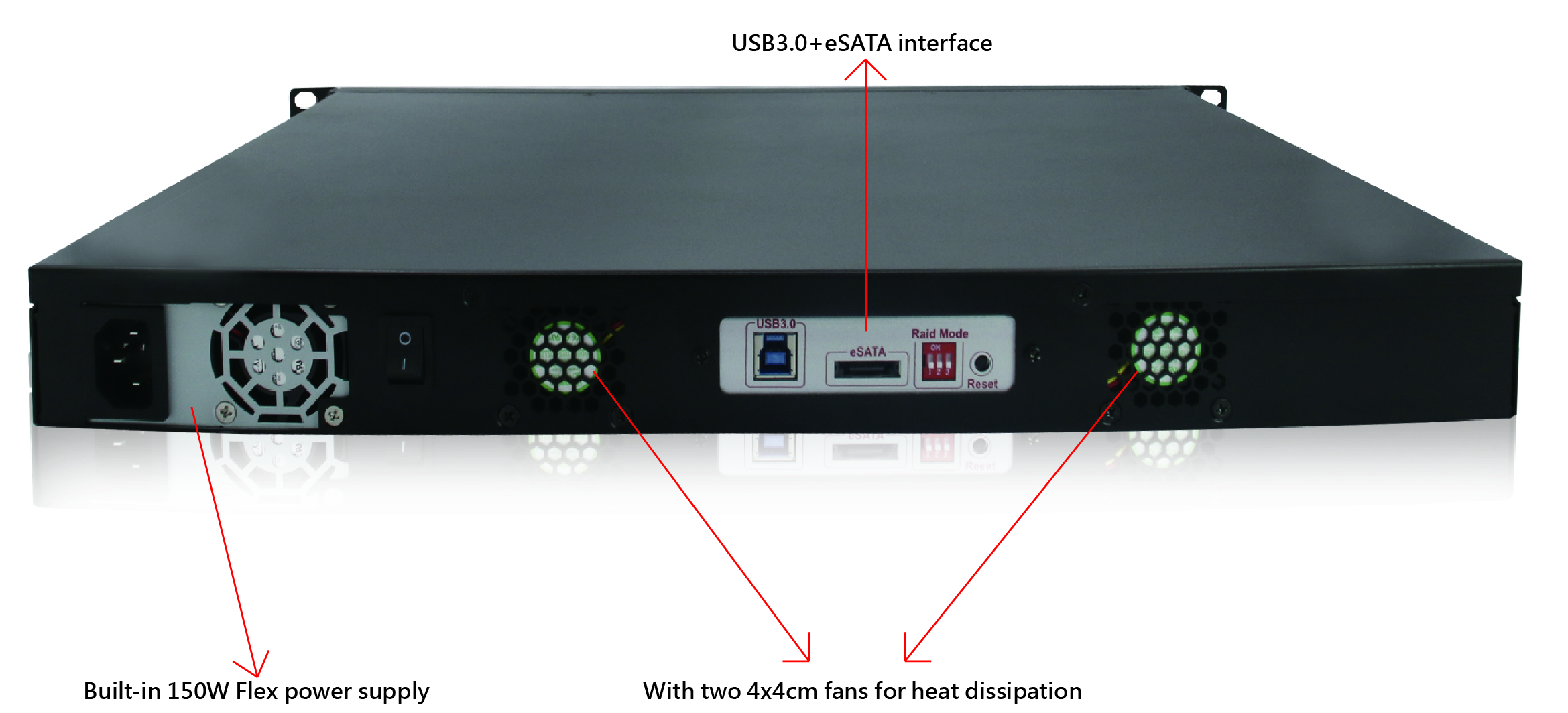

| Power Supply : | Built-in 150W Flex power supply | |
| Lock : | Yes | |
| Swapping Guarantee Cycle | Guarantee HDD hot swap cycle upto 50,000 times | |
| LED Indicator : | Solid blue for power ; Blinking blue for HDD access ; Blinking red for RAID is being rebuilt | |
| RAID : | 0\1\3\5\JBOD\PM(Nor)\Clone | |
| Heat-dissipation system : | 2* 40 x 40 x 20 mm DC 12V sleeve bearing fan | |
| Power and working environment | Voltage: AC 100~220V | |
| Working Temperature: 0°~ 55°C | ||
| Storage Temperature: -20°至 55°C | ||
| Relative Humidity：5% ~ 65%, noncondensing | ||
| Hot swap support : | Yes | |
| Operating System： | Windows/Mac | |
| Material : | SECC, SUS430 stainless steel, PC | |
| Dimension (L*W*H) : | 402(L)*430(W)*44.5(H) mm | |
| Product Weight : | 7 Kg | |
| Packing： | 1pcs / carton | |
| Packaging Contents : | MRA306 | 1 |
| Manual | 1 | |
| Frame screws | 8 | |
| AC power cable | 1 | |
| USB3.0 cable | 1 | |
| eSATA Cable | 1 | |
| Key | 2 | |
