MRA275 PRO can be mounted in the standard 3.5" bay
Unique design with delicate mechanism.
|
 |
|
MRA275L PRO 2 x 2.5” internal HDD enclosure With Lock for more security |
 |
|
|
 |
|

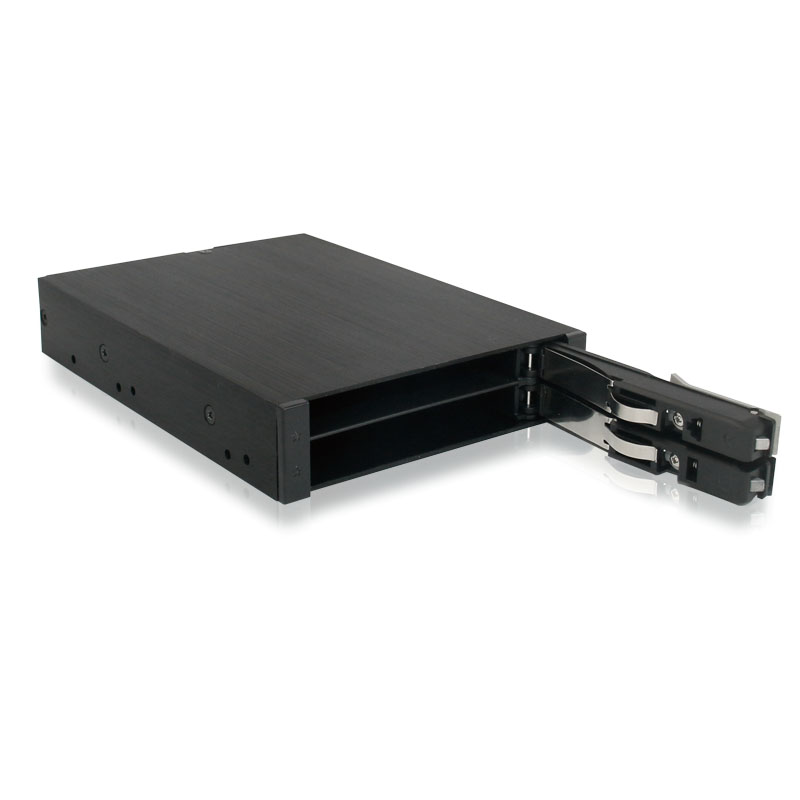

Aluminum case for better heat ventilation. The mechanical has many ingenuities: Tool free, Screw-less, and Tray-less structure. Patented design push bar, it connects to the door and gives very smooth feel while inserting and ejecting the HDD. With Lock for more security. Well measured and precise mechanical, fits two 2.5" SATA hard drive with good protection and smooth operation. World patent NSS connector, give 50,000 duty cycle to the hard drive under frequent hot-swap environment. The only & first world patent Non-scrach SATA connector (NSS-C) NSS-Connector is a movable connector. It owns world patents, includes EU, USA , Japan, Korea, China, Taiwan and ets. It gives point-to-point contact with hard drive. It minimizes the friction that may cause the damage or scratch to the hard drive's gold finger. It lengthens the life cycle of hard drive, we guarantee 50,000 duty cycles. |
Product specification
| Model No. : | MRA275L PRO |
| Model name | 2 x 2.5” internal HDD enclosure |
| Type of HDD | 2 x 2.5” SATA / SAS HDD |
| Product Color | Black |
| Product Size | 150.2 x 101.2 x 25mm |
| Material | Plastic ABS, Aluminum, SGCC |
| LED indicator | Solid blue LED for power and blinking orange LED for HDD access |
| Interface | SATA / SAS up to 6Gbps |
| Swaping Guarantee Cycle | Quarantee HDD hot swap cyle upto 50,000 times |
| Supported HDD type | 2 x 2.5” SATA / SAS HDD |
| Supported HDD thickness | 9.5mm |
| Product weight | 220g |
| Working Environment | 0 ~ 50°C |
| Operating System | Windows/Mac |
| Accessory | Screw x 4 ;Keyx1;User manualx1; |
| Application | Surveillance, Security, DVR, Media and Sever |
